Silent Communicators, Essential Protectors: Why Site Safety Signage Matters

On any active worksite—whether it’s a high-rise construction zone, a manufacturing plant, or a bustling warehouse—hazards are everywhere. Heavy machinery, chemical exposures, slip risks, and overhead loads present daily challenges to worker safety. While safety inductions and Personal Protective Equipment (PPE) form the foundation of site safety, safety signage serves as the continuous visual boundary between safety and accident.

Proper signage doesn't just fulfill a legal obligation—it creates a culture of awareness, reduces incident rates, and ensures that everyone on-site, from seasoned trade contractors to first-time site visitors, goes home safely at the end of the day.

1. The Critical Role of Site Safety Signage

Visual cues are processed far faster by the human brain than written instructions or verbal warnings during inductions. Effective site safety signage plays several core roles:

  • Immediate Danger Awareness: Identifies acute hazards like high-voltage equipment, toxic fumes, or overhead crane operations before a worker enters a dangerous zone.

  • Behavioral Regulation: Mandates necessary actions (e.g., "PPE Must Be Worn") and strictly prohibits risky behavior (e.g., "No Unauthorised Entry").

  • Emergency Navigation: Directs personnel toward emergency exits, muster points, eyewash stations, and first aid kits during a crisis.

  • Legal Compliance & Liability Protection: Helps duty holders fulfill their obligations under Work Health and Safety (WHS) laws, protecting companies from regulatory fines and legal liabilities.

2. Navigating the Standards: AS 1319:1994

In Australia, workplace safety signage is governed by AS 1319:1994 — Safety signs for the occupational environment. Prepared by Standards Australia, this standard outlines the visual language, design criteria, colors, shapes, and placement rules needed for consistent communication across all Australian workplaces.

Key Sign Categories Under AS 1319

Category Purpose Visual Characteristics Example
Prohibition Signs Specifies actions that are not permitted. Red annulus (circle) with a red diagonal slash over a black icon on a white background. No Smoking, No Unauthorised Access
Mandatory Signs Indicates an instruction or required behavior. Blue circle with a white pictogram and/or white text on a blue background. Eye Protection Must Be Worn, Hard Hats Required

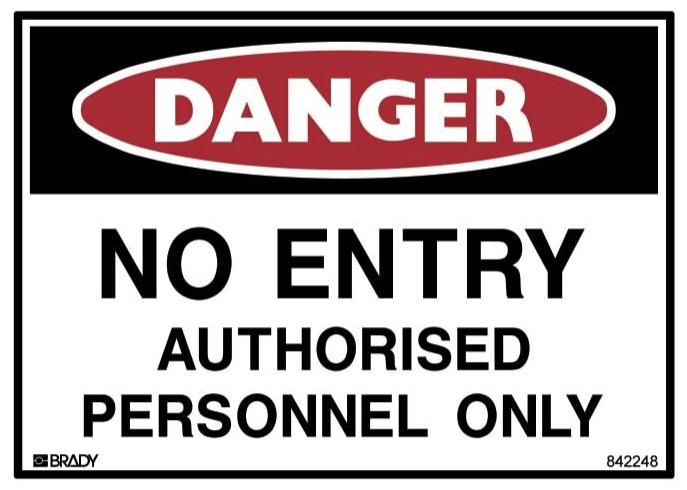

Danger Signs Warns of hazards or conditions that are life-threatening. Red oval inside a black rectangle header with the word "DANGER" in white text. Danger: High Voltage, Danger: Confined Space
Warning Signs Warns of hazards or conditions that are not likely to be life-threatening. Yellow triangle with a black border and black pictogram/symbol. Caution: Slippery When Wet, Forklift Hazard
Emergency Information Indicates the location of emergency facilities or equipment. Green rectangle with white text or pictogram. First Aid Kit, Emergency Exit, Assembly Point
Fire Signs Directs workers to fire alarms and fire-fighting equipment. Red rectangle with white text or pictogram. Fire Extinguisher, Fire Hose Reel

Placement Tip: Mandatory PPE signs should always be positioned at the approach to a hazard zone (typically 3–5 meters before the boundary), giving workers enough time to put on their protective gear before entering the area.

3. Getting the Size Right: The Viewing Distance Guide

A safety sign is ineffective if it cannot be read clearly from a safe distance. AS 1319:1994 sets specific sizing formulas based on the required viewing distance.

The AS 1319 Standard Formulas

When a sign is placed in a well-lit area in a prominent position, the minimum sizing requirements are:

  • Pictograms / Symbols: Minimum 15 mm of height per metre of viewing distance.

  • Uppercase Text: Minimum 5 mm of height per metre of viewing distance.

  • Lowercase Text: Minimum 4 mm of height per metre of viewing distance.

Note: In poor lighting conditions or low-visibility environments, AS 1319 recommends increasing these dimensions by at least 50%.

Recommended Signage Distance Chart

Below is a quick-reference viewing distance chart based on AS 1319:1994 specifications:

Viewing Distance Minimum Pictogram Height Minimum Uppercase Text Minimum Lowercase Text Recommended Overall Sign Size (Approx.)
Up to 2 m 30 mm 10 mm 8 mm 225 x 300 mm
Up to 5 m 75 mm 25 mm 20 mm 300 x 450 mm
Up to 10 m 150 mm 50 mm 40 mm 450 x 600 mm
Up to 20 m 300 mm 100 mm 80 mm 600 x 900 mm
Up to 30 m 450 mm 150 mm 120 mm 900 x 1200 mm

4. Best Practices for Maintaining Site Signage

Installing signs is only half the battle. To remain compliant and effective, keep these operational best practices in mind:

  1. Maintain Line of Sight: Place signs near eye level (roughly 1.5 m to 1.8 m from the ground) and ensure they are not obscured by stacked pallets, open doors, or parked machinery.

  2. Regular Audits & Cleaning: Industrial dust, mud, and grime degrade legibility. Clean signs regularly during routine site inspections.

  3. Replace UV-Faded Signs: Sun exposure causes bright red and yellow warning colors to fade over time. Faded signage violates AS 1319 compliance and diminishes visual impact.

  4. Use Retroreflective Material Outdoors: For night shifts, mining haul roads, or roadside worksites, select Class 1 or Class 2 retroreflective signs under AS/NZS 1906.1 so they illuminate under headlights and torches.

Final Thoughts

Site safety signage is far more than a checklist item—it is an active defense system designed to protect lives. By adhering to AS 1319:1994, calculating correct viewing distances, and conducting regular audits, site managers can create an environment where safety warnings are impossible to miss and easy to follow.
