Signs of Safety: The Ultimate Guide to Traffic Control Signage and Australian Standards

Whether it’s a major highway upgrade, a suburban utility fix, or a temporary civil construction site, managing traffic is one of the most high-risk activities a business can undertake. The signs deployed on-site aren't just directional cues; they are legal instruments designed to protect the lives of road workers, drivers, and pedestrians alike.

In Australia, you cannot just paint a piece of plywood yellow and call it a road sign. The design, manufacture, and deployment of traffic control safety signage are heavily regulated.

Here is what you need to know to ensure your traffic control signage stands up to the scrutiny of Australian Standards and works effectively on the road.

1. The Core Standards: The MUTCD Framework

Traffic signage compliance in Australia relies on two definitive pillars managed by Standards Australia. Think of it as a double-act between how signs are used and how signs are made.

  • AS 1742 (Manual of Uniform Traffic Control Devices): This comprehensive multi-part standard dictates the uniform practices for signs, signals, and pavement markings.

    • AS 1742.3:2019 is the most critical subsection for worksites. It covers Traffic control for works on roads, outlining exactly where signs must be placed, how far in advance they are required, and how to safely guide road users through changing conditions.

  • AS 1743 (Road Sign Specifications): This standard dictates the physical manufacturing process. It establishes exact layouts, shapes, symbols, background colours, and standard typography (AS 1744 fonts) so a driver moving from state to state instantly recognises the warning.

📍 The Jurisdictional Note: While the national Austroads Guide to Temporary Traffic Management (AGTTM) and AS 1742.3 set the national framework, each state road authority (like Transport for NSW, VicRoads, or QLD TMR) publishes local amendments or supplements. Always cross-reference your national kit with state-specific guidelines.

2. Understanding the Sign Series

To avoid driver confusion, Australian Standards categorize traffic signage into distinct "Series" based on their legal function and visual design:

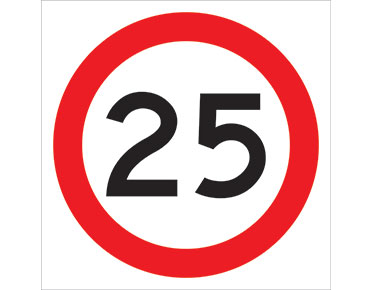

🔴 Regulatory Signs (R Series)

These signs tell road users what they must or must not do. Because they are legally enforceable by police, ignoring them constitutes a traffic breach.

  • Examples: Speed limits (e.g., "40 km/h"), "STOP", "GIVE WAY", and "NO ENTRY".

  • Design: Typically feature white backgrounds with red circles or borders, or unique distinct shapes (like the Stop octagon).

🚧 Temporary & Multi-Message Signs (T & TM Series)

These are the absolute bread and butter of traffic management zones. They tell drivers that standard road conditions have temporarily changed due to works or events.

  • Examples: "ROADWORK AHEAD", "PREPARE TO STOP", "LANE CLOSED", and "END ROADWORK".

  • Design: High-visibility yellow or orange backgrounds with bold black text or symbols. Multi-message signs are commonly fitted into steel frames to combine speed limits and situational warnings efficiently.

🟡 Warning Signs & Hazard Markers (W & D Series)

Used to alert drivers to permanent or upcoming physical layout hazards.

  • Examples: Sharp curve arrows, pedestrian crossings, or chevron alignment markers.

  • Design: Typically diamond-shaped with a yellow background and black symbols.

3. Placement, Sizing, and the "Advance Warning" Rules

Even a perfectly compliant sign is useless if it is placed too late for a driver to react. Under AS 1742.3, sign placement relies entirely on the approach speed of the roadway.

  • Size Codes (A to D): Signs scale up as road speeds increase. A small "Size A" sign might be perfect for a quiet 50 km/h local street, but high-speed expressways or 110 km/h highways require massive "Size C" or "Size D" signs so they can be read from hundreds of metres away.

  • The Reaction Buffer: If a road has a standard speed limit of 100 km/h, the first advance warning sign ("ROADWORK AHEAD") must be placed at least 500 metres before the work zone. On a 60 km/h road, a buffer of 150 metres is typically standard.

  • Line of Sight: Signs must never be obscured by crests, curves, or roadside vegetation, and they must be safely weighted down using sandbags (never rocks or concrete blocks, which turn into lethal projectiles if struck by a vehicle).

4. Reflectivity and Durability Requirements

Roadworks don't stop when the sun goes down, meaning your signs cannot lose their voice in the dark.

Under AS 1906 (Retroreflective Materials), traffic control safety signs must feature specialized retroreflective sheeting. This technology bounces the light from a vehicle's headlights directly back to the driver's eyes.

  • Class 1 / Class 400 Sheeting: The minimum benchmark standard for temporary roadwork signage. It offers exceptionally high reflectivity for night works and low-light conditions (such as heavy rain or fog).

  • Substrate Toughness: To withstand harsh Australian environments, signs must be made of durable materials like marine-grade rigid aluminium, robust sheet steel, or high-impact corflute for short-duration mobile works.

5. Common Traffic Signage Mistakes to Avoid

A quick inspection of poorly managed sites often reveals a few common compliance traps:

  • Cluttered Messaging: Putting more than three multi-message panels together. Drivers traveling at speed cannot read a wall of text; keep it clear, simple, and punchy.

  • The "Left-Over" Sign: Forgetting to cover or remove temporary signs when workers pack up for the day. If drivers constantly see "40 km/h" signs with no work happening, they experience "sign fatigue" and start ignoring traffic zones entirely.

  • Faded Material: Using old, sun-bleached, or scratched signs. If the retroreflective film is degraded, the sign fails to comply with AS 1743 and must be retired.

Summary Checklist for Compliant Traffic Signage

Requirement Relevant Benchmark Key Operational Action
Sign Design AS 1743 / AS 1744 Ensure standard fonts, icons, and approved colours are used.
Layout Planning AS 1742.3:2019 / AGTTM Plan advance warning sign distances matching the road's approach speed.
Night Visibility AS 1906 Ensure retroreflective sheeting is intact and free of heavy scratching.
Site Tidy-Up WHS Regulations Promptly remove or cover signs as soon as conditions return to normal.
